Multi-Currency Fitness SorterMulti-Currency Fitness Sorter

Overview

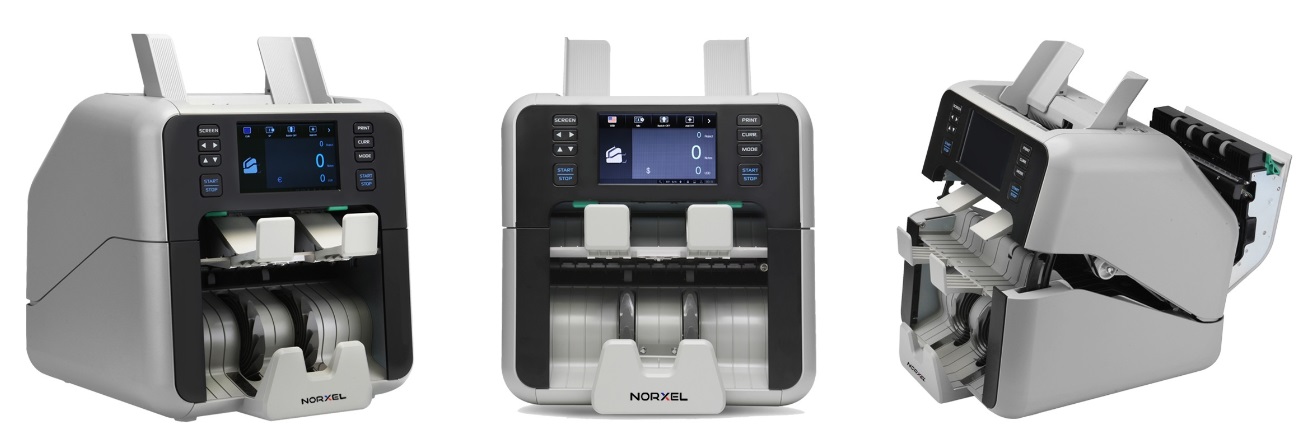

NORXEL NX-9200 Currency Fitness Sorter & Discriminator ensures outstanding cash handling operation in multiple aspects (save time and cost, reduce human error and minimize space). The machine is equipped with state-of-the-art detection sensors, high quality material, user friendly functions and professional analytical software. NX-9200 is ideal to improve fitness sorting and separating performance in banks, Cash-in-Transit Companies and Casinos.

State-of-the-Art Authenticating Technology

NX-9200 is equipped with the state-of-the art spectrum sensor, high accuracy double CIS, optical analytical sensor and high speed OCR that could process banknotes up to 1500 notes/minute.

Multi-Function Operation:

- Denomination & Version Sorting: Notes can be sorted based on denomination and version / year of emission.

- Face & Orientation Sorting: Each denomination can be sorted by by face up/down and orientation up/down before distributed to ATM or returned to Banks.

- Fitness Sorting: this function is effective for sorting Fit/Unfit/ATM/Counterfeit notes.  High precision optical sensors reduces human error and improves productivity compared to manual fitness sorting.

- Batch Arrangement: every bundle is usually set to 100 notes for banks or 250 notes for ATM. The user friendly touch screen panel can be used to set the batch.

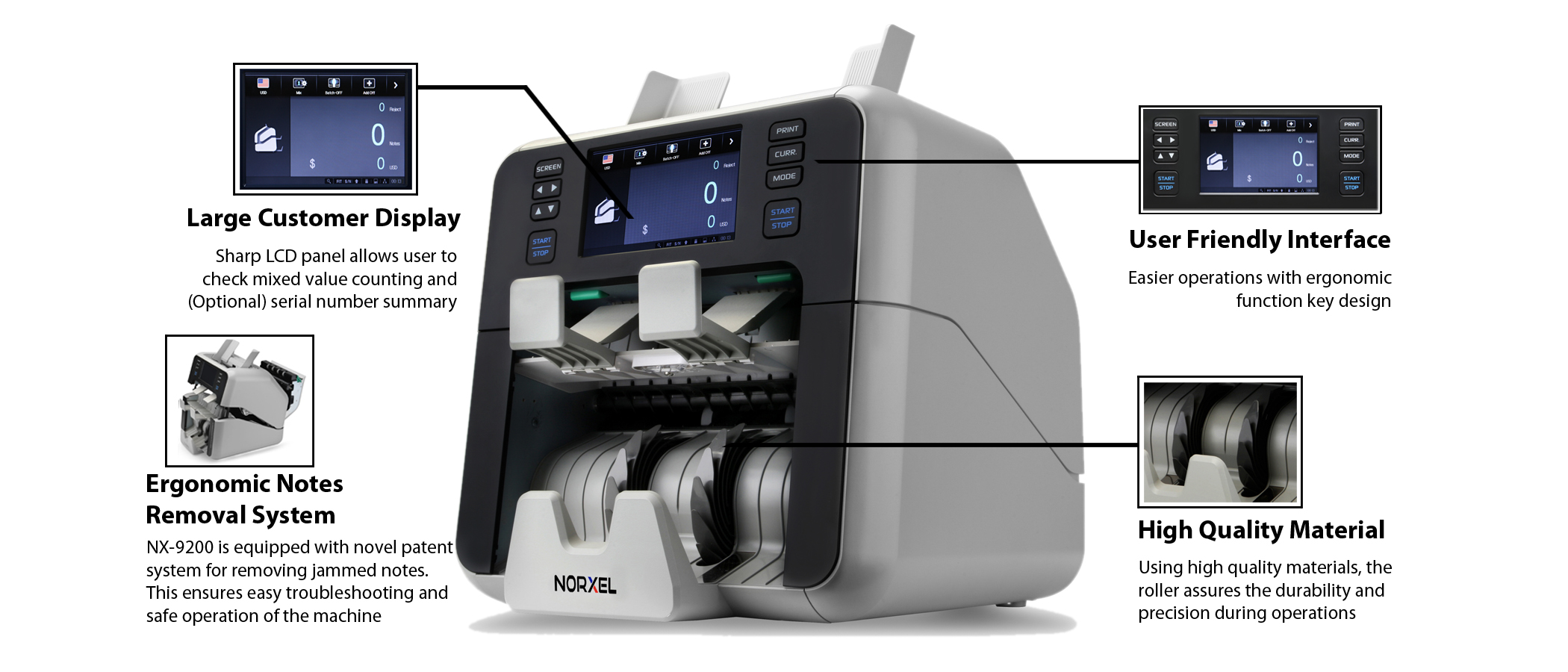

LCD Internal & External Displays:

5'' Internal display shows the counting results and the machine status. The error message and illustration are also shown to ensure user friendly operation for quick troubleshooting & recovery. Optional external display can be connected to the machine to improve security protocol in banks and CIT companies.

Detection Sensor:

Fluorescence Detection

Security Thread Detection

Magnetic Detection

Ultraviolet (UV) Detection

IR Detection

White Image Discrimination

IR Image Discrimination

Spectrum Detection

Serial Number Reading

Water Mark Optical Analysis

Thickness Detection For Tapes

Specification:

Applicable Notes: Up to 30 World Currencies ( USD,EUR,JPY,IDR,JPY,KRW & others)

                                Width : 65-100m

                                Length : 125-170mm

                                Thickness : 0.075 – 0.15mm

Speed:  1500 Notes / Minute (Detection)

Pocket:                 (Standard) 1 Stacker & 1 Reject

Hopper Capacity:  700 Notes (Hopper)

                                250 Notes (Stacker)

                                100 Notes (Reject)

Power Supply: 220V – 60Hz ; 240W

Weight : 12Kg

Dimension: 300mm X 345mm X 295mm
