Overview

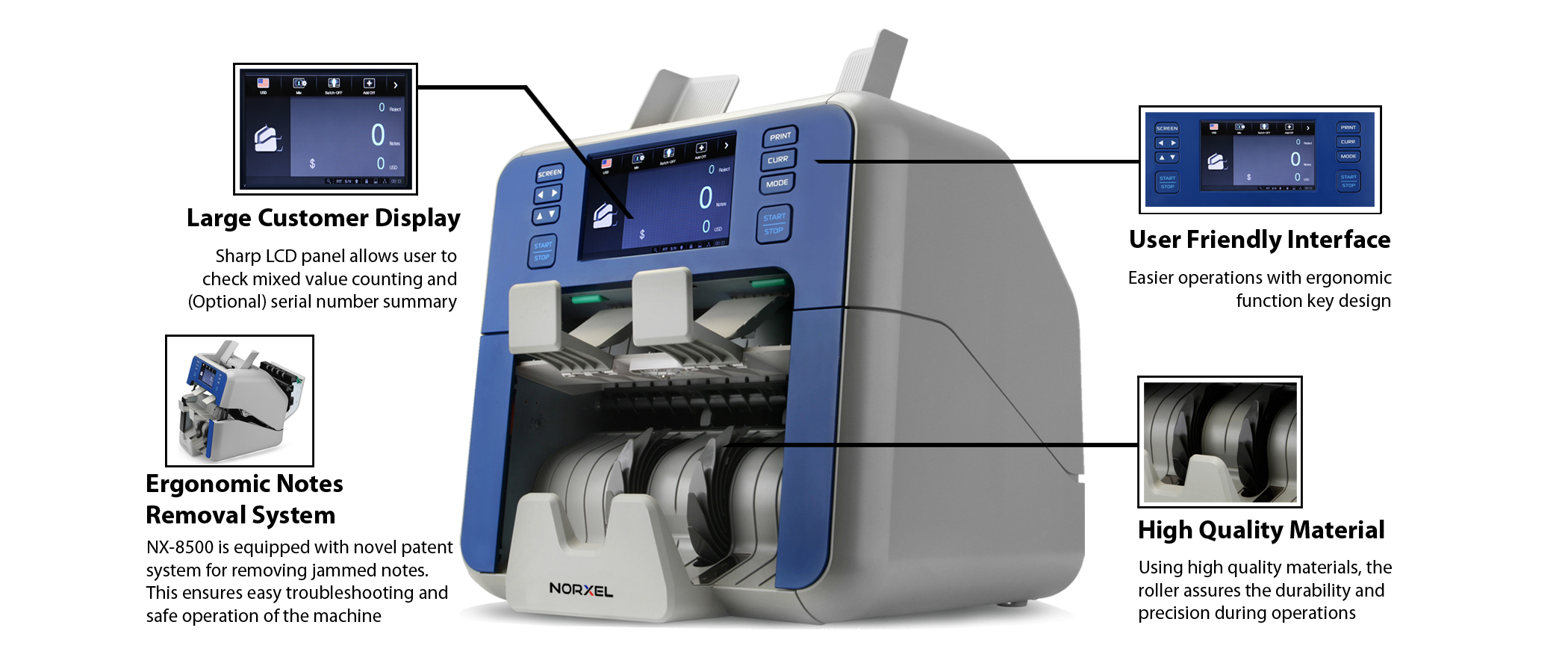

NORXEL MULTI-CURRENCY DISCRIMINATOR NX-8500 is equipped with multiple detection sensors to process up to thirty (30) currencies. The machine has 2-pocket and user friendly functions (Count, Mix, Batch, Serial/Value Sorting, Serial Number Print, Face and Orientation) for optimum efficiency. NX-8500 is ideal for Cash Handling Operation involving multiple currencies in Banks, Cash-in-Transit companies, hotels and money changers.

Features

  • State of the Art Sensor Technology : NX-8500 is equipped with multiple sensor devices and coupled the technology with complete report system. The machine also includes User Friendly Function (Count,Mix,Batch,Serial/Value Sorting, Face and Orientation).
  • Precise Counterfeit Detection : This two-pocket  discriminator checks the notes during  the  counting process  and  precisely  sorts suspect notes into the reject pocket.  NX-8500  is  coupled  with  Industry  leading  CIS sensor, UV, FL, MG, MT, IR ,ISA and High quality OCR to reduce human error and financial loss.
  • Automatic Self Check Test : This user friendly test allows users to assure the functioning of major components in the machine and any software error.
  • Multi-Currency and User Friendly Function
    Allows user to count mixed denominations up to thirty (30) currencies) and provide user with value/serial number summary of the counting process. NX-8500 also includes User Friendly function (Count, Mix, Batch, Serial/Value Sorting, Serial Number Print, Face & Orientation).

Specifications

Applicable Notes: Up to 30 World Currencies ( USD,EUR,JPY,IDR,JPY,KRW & others)

                                Width : 65-100m

                                Length : 125-170mm

                                Thickness : 0.075 – 0.15mm

Speed:  1500 Notes / Minute (Detection)

Pocket:                 (Standard) 1 Stacker & 1 Reject

Hopper Capacity:  700 Notes (Hopper)

                                250 Notes (Stacker)

                                100 Notes (Reject)

Power Supply: 220V – 60Hz ; 240W

Weight : 12Kg

Dimension: 300mm X 345mm X 295mm

*Specifications may change without prior notice
