Multi-Currency DiscriminatorCurrency Discriminator

Overview

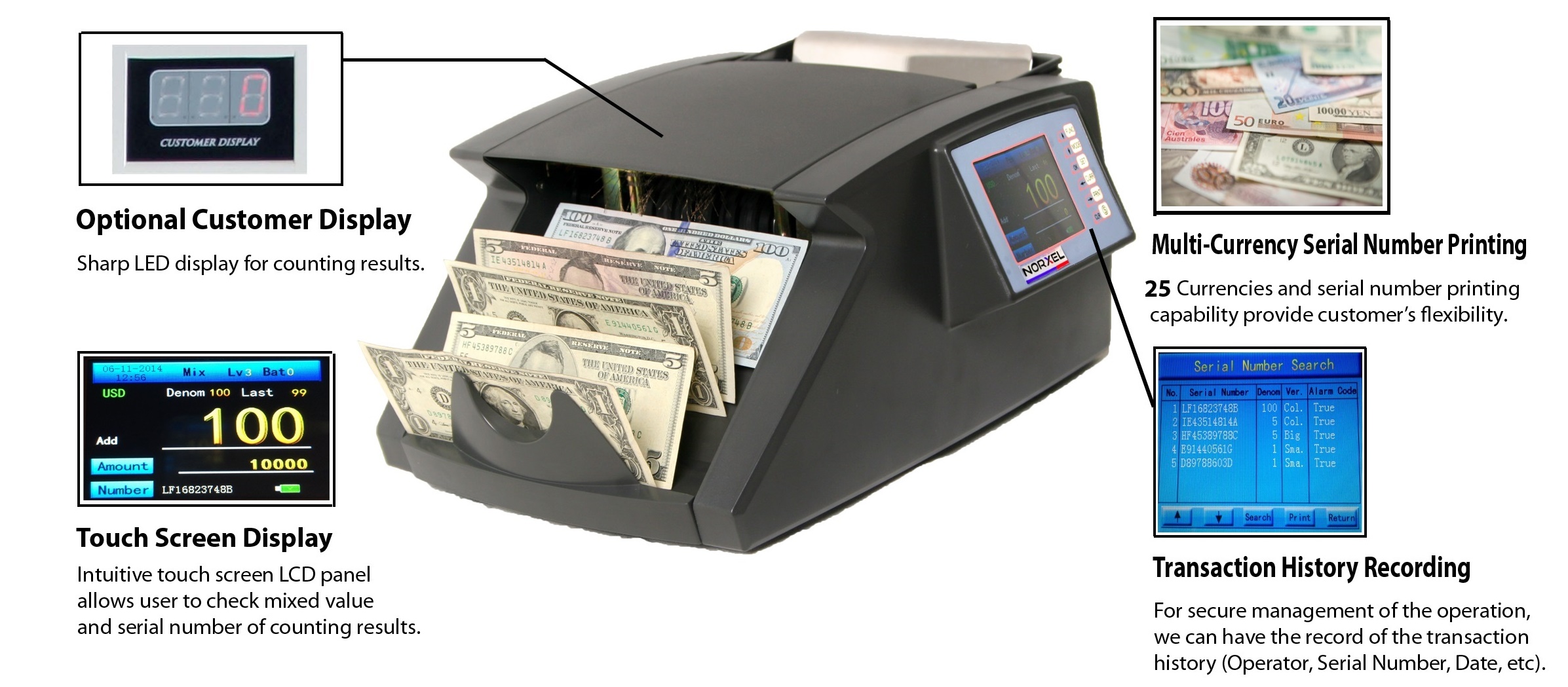

NX-8200 is designed to handle up to 25 (Twenty-five) currencies mixed counting and serial number printing of USD,EUR,SGD,HKD & others. The machine is also equipped with industry leading sensors (UV, MG, IR, & Double-CIS) & also NORXEL technology intelligent Spectrum Analysis (ISA) which includes dluorescense, magnetic security thread, white image, water mark and serial number optical analysis. NX-8200 is ideal for cash handling operations involving multiple currencies in banks, cash in transit companies, hotels and money changers.







Features

  • Multi-Currency Software
    Allows user to count mixed denominations up to 25 (twenty-five) currencies and  provide user with Optional value/serial number capturing of the counting process. Should there be any suspect notes, it will show the explanation of the error.
  • Easy Software Upgrades Through USB Port
    The machine is equipped with user friendly functions (count, mixed, add, batch and value sorting). Counting sumary can also be printed or saved in computer. The alarm function will be active when suspect notes are found.



  • User Friendly Function
    The machine is equipped with user friendly functions (count, mixed, add  batch, face and value sorting). Counting summary can also be printed or saved in computer. The alarm function will be active when suspect notes are found.



  • Ergonomic Note Removal System
    Special structure to remove jammed notes from the machine has been implemented to ensure the safety of each user during operation.



  • Automatic Self-Check Test
    This user friendly tests allows users to assure the functioning of major components in the machine and any software error.


Specifications

Weight 8,5 Kg
Applicable Notes

Up to 25 (twenty) currencies
Width: 50-82mm
Length: 110-175mm
Thickness: 0.075-0.15mm

Counting Speed 1000 notes/min (SN Capture)
Detection UV, MG, IR, Double-CIS, ISA
Hopper Capacity 200 sheets (Hopper)
200 sheets (Stacker)
Power Supply 110V/60Hz - 220V/50Hz; 50W

*Specifications may change without prior notice
